Mapping the Narrow Transition Between Established Neighborhoods and Mountain Terrain

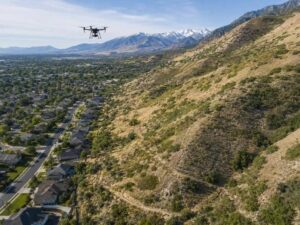

The edge where a city stops and a mountain starts holds the hardest planning decisions. Drone LiDAR mapping covers that whole band in one pass, showing the streets, the last row of houses and the rising ground behind them on a single connected surface. Planners need to see all of it together. Splitting the work into separate surveys produces maps that never quite line up where the decisions actually happen.
Capturing the Full Elevation Change From Streets to Foothills
A flight can cross flat neighborhood ground and steep slope in the same collection, which matters more than it sounds. Ground survey crews measuring that band would spend weeks and still produce a surface stitched together from different days and different methods.
One data set removes those seams. A planner can trace the ground from a curb line to a ridge top without wondering whether two surveys agree at the boundary between them. The relationship between the built area and the terrain above becomes measurable rather than approximate.
Identifying Ridges, Draws, and Natural Access Barriers
Terrain decides where a road can go long before a designer draws one. Ridges block direct routes. Draws collect water and create crossings that cost money. Slopes above a certain grade rule out streets entirely, and those constraints appear clearly on a detailed elevation model.
Utilities face the same limits. Water lines need pressure zones that follow elevation. Sewer needs gravity. A model that shows the full elevation range lets an engineer test whether a service area works at all before anyone commits to a concept.
Mapping Vegetated Ground Without Treating the Canopy as Terrain
Foothill slopes carry brush, scrub oak and trees, and LiDAR returns come off all of it. The processing team separates ground returns from vegetation returns to build a bare earth surface, which is the only surface a designer can use.
That classification takes review. Dense brush lets fewer pulses reach the ground, so the model can thin out under heavy cover. A responsible deliverable reports where ground point density dropped and where the surface deserves less confidence. A map that looks uniformly detailed while hiding weak areas misleads the people relying on it.
Comparing Expansion Areas With Existing Neighborhood Edges
The transition zone is where old and new developments have to meet. Streets need to connect at compatible grades. Drainage from a new area cannot dump onto an existing one. Lot elevations along the edge should relate sensibly to the houses already there.
The mapping supports those comparisons directly. Planners can measure the grade difference between an existing street stub and the ground it would extend into, then see whether the connection works. The pieces that get checked against the surface include:
- existing street ends and the grades a connection would require
- drainage paths crossing from the new area into the built one
- slope percentages across proposed lots and open space
- ridges and high points that limit views, access or utility service
Focusing Later Fieldwork on the Preferred Development Area
Aerial data covers everything, and it does not answer everything. Once planners narrow the concept to a preferred area, conventional crews go in with precise instruments and do the detailed work that design and construction require.
That sequence keeps costs sensible. Nobody pays for a detailed ground survey across a thousand acres when the project will use two hundred. The broad model guides the choice, and the precise fieldwork follows the choice rather than preceding it.
Frequently Asked Questions
How accurate is a bare earth surface built under vegetation?
Accuracy depends on how many pulses reach the ground, so open slopes produce better results than dense brush. The processing report should state the ground point density and any areas of lower confidence, and field checks confirm the surface where accuracy matters most.
Can one flight cover both flat neighborhoods and steep terrain?
Yes, though the flight plan needs to account for the elevation change. Planning the altitude, the overlap and the flight lines around the terrain keeps the point density consistent across the whole area.
Does aerial mapping replace ground survey for design?
No. It provides a broad surface for planning and early design, and it does not replace the control, the boundary work and the detailed topography that construction documents require.
